The large character dot matrix inkjet printer is an industrial equipment specially used to print large font logos on products or outer packaging. Different from the small-character inkjet printer for fine printing, it pays more attention to long-distance readability and low-cost operation, and is widely used in logistics, warehousing and roughing.

1. Core role

1. Achieve large size and high recognition logos

jet printing charactersThe altitude is usually at10mm to 60mm, far exceeding the common 1-5mm small characters on the market

ensure5-10 meters awayIt can still be clearly identified, suitable for long-distance sorting and verification in warehouses and freight stations

2. Solve the problem of assigning codes to impermeable and rough surfaces

mayCarton boxes, woven bags, plastic films, wooden boards, gypsum boards, pipesEqually rough or curved surfaces for stable adhesion

The ink has strong adhesion and is not easy to be rubbed off or scratched

3. Provide flexible identification solutions for subsequent processes and warehousing logistics

Does not rely on high-speed assembly lines, suitable forComplement code, temporary code change, and outer box number of offline productsand other scenes

Can be held by hand or mounted on a simple stand, flexibly cope with multiple varieties and small batch production

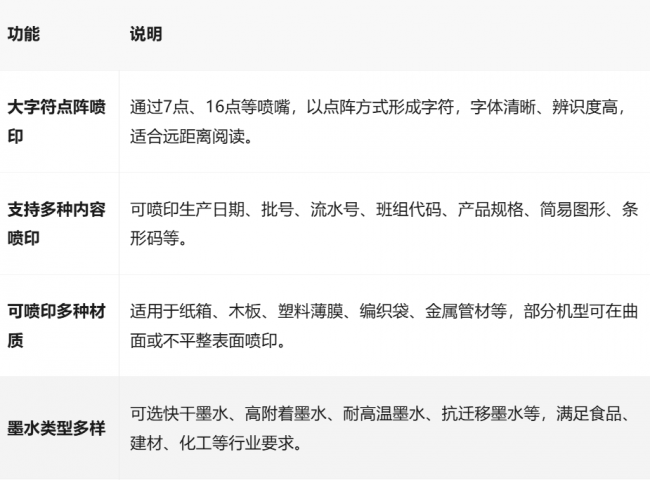

2. Main functions

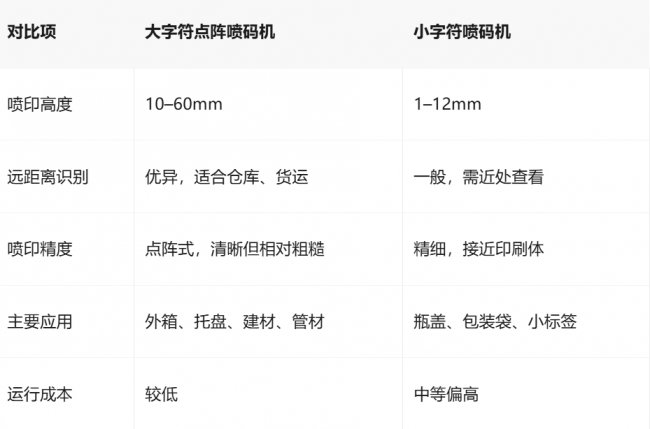

3. The main difference between it and large character and small character inkjet printer

4. Typical application scenarios

Logistics warehousing: spray print the delivery code, waybill number, weight, etc. on express cartons, wooden trays, and woven bags

Building materials industry: spray printing specifications, brands, and production dates on gypsum board, cement bags, wooden boards, and pipes

Food and beverage: spray print batch, shelf life, traceability code on the outer carton

Chemical industry: spray printing on barrels, bags, and boxesDangerous product identification and batch information

agricultural products processing: Spray print the origin, grade, and date on the fruit and vegetable turnover boxes and packaging bags
