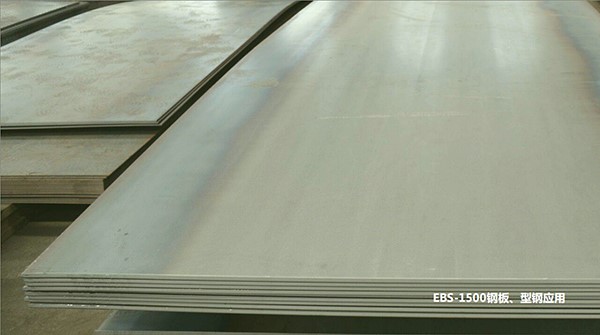

As a commonly used steel plate, steel plate has the characteristics of diverse materials and wide applications.

According to thickness, it can be divided into thin steel plates, medium thick steel plates, and extra-thick steel plates; according to rolling, it can be divided into hot rolled and cold rolled steel plates; according to steel types, it can be divided into ordinary steel, high-quality steel, alloy steel, spring steel, stainless steel, tool steel, heat-resistant steel, bearing steel, silicon steel and industrial pure iron thin plates, etc.; according to surface coating, there are galvanized thin sheets, tinned sheets, lead plated thin sheets, plastic composite steel plates, etc.

Due to the diversity of the steel plate itself, the content requirements and production requirements of steel plate spray marking also show diversity characteristics. EBS inkjet printer can provide ideal marking solutions for different types of steel plates.

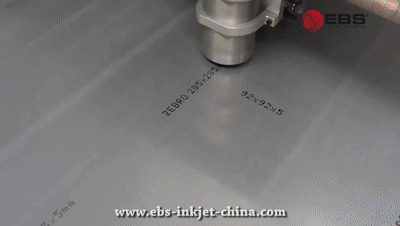

For steel plates with conditions and venues, large production batches and high spray printing requirements, the EBS-1500 large character inkjet printer can provide a fully automatic marking solution for such steel plates.

Print font height 8~115 mm (64D)

You can print 10 different lines of content at the same time

Equipped with quick-drying ink, the logo surface is clean and tidy

Advanced identification tasks of different heights and lines can be easily completed

Can spray print numbers, letters, line codes, Chinese, QR codes, graphics, etc.

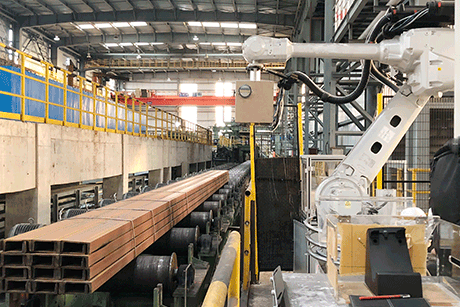

Can be integrated on PLC and robot arm for fully automated printing, and communicate with enterprise database in real time

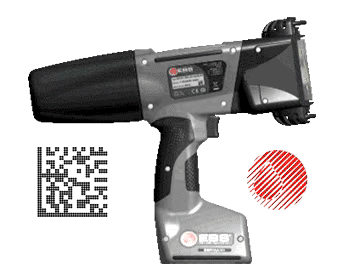

For steel plates with limited space and small batches, the EBS portable handheld inkjet printer is the ideal choice for marking such steel plates.

The ultra-large size hardened LCD touch screen allows you to edit and adjust the print content directly on the printer

The height range of sprayed fonts is 8-57 mm

Double the printing height, you can print complex digital images, QR codes, etc.

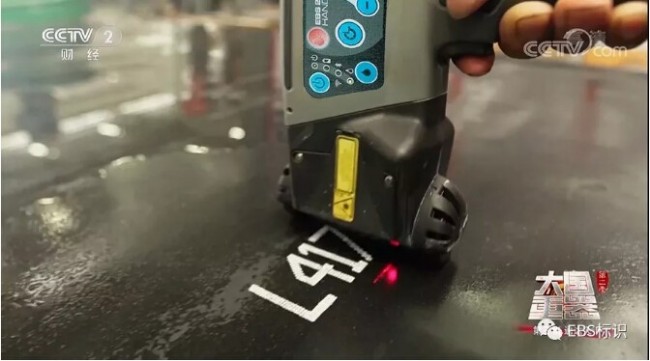

Laser positioning, precise jet printing combined with automatic package measurement technology reduces manual errors

Equipped with a 16G memory card, a large amount of information, pictures, and data can be stored, and there is no limit to the information print length

Multiple transmission methods, wifi, Bluetooth or USB

System customization and development can be carried out and connected with enterprise databases

In addition to suitable machines, EBS provides suitable ink packages for steel plate markings. EBS inkjet printers come standard with quick-drying inks, which will not fade or pad printing on steel plates, and will not affect subsequent work. EBS provides multiple color inks for steel plates with different color surfaces, including but not limited to black, white, red, yellow and blue, to provide contrast on the surface of the steel plate. For steel plates with rusty surfaces, EBS high-brightness white ink can improve the readability effect for marking. After spraying, a steel plate needs to be over-high temperature, and EBS can also provide ink that can withstand 1000 degrees to ensure that the interior of the spraying is firmly and clearly preserved after the high temperature.
